PCD / PCBN super hard non-standard blade

Introduction to the properties of PCBN non-standard tools:: Polycrystalline cubic boron nitride (PCBN) cutters are specially made according to different workpieces and special requirements of customers. The PCBN composite sheet is welded to the carbide cutter body or the steel cutter body. Because PCBN tool material has excellent cutting performance, it is especially suitable for machining hardened steel with hardness above HRC45, wear-resistant cast iron, heat-resistant alloy above HRC35, and pearlitic gray cast iron below HRC30, which is difficult to machine with other inserts.
Introduction to the properties of PCD non-standard tools:: Polycrystalline diamond (PCD) cutters are specially made according to different workpieces and special requirements of customers. The PCD composite sheet is welded to the carbide cutter body or the steel cutter body. Compared with other materials, diamond knives have the following characteristics: 1. Extremely high hardness and wear resistance. 2. High thermal conductivity and low thermal expansion coefficient, fast heat dissipation during cutting, low cutting temperature and small thermal deformation. 3. The friction coefficient is small, which can reduce the roughness of the machined surface. PCD tools are also widely used in high-speed machining of other non-ferrous and non-metallic materials; the main application areas are automotive, aerospace, electronics and wood processing.

PCBN super hard tool
PCD superhard tool

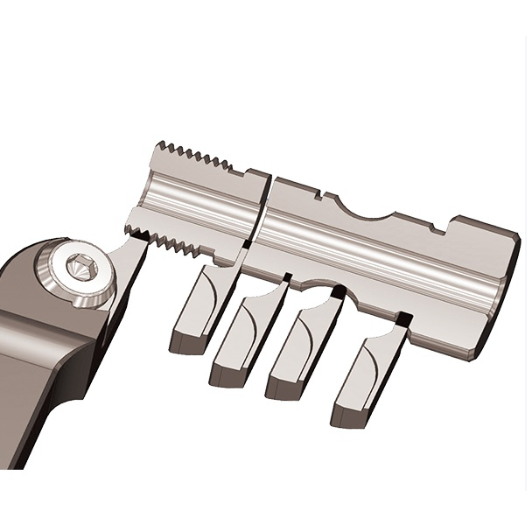

PCBN-PCD groove machining tool It can effectively ensure the precision of the workpiece at high speed and solve difficult machining problems, which is more than 5 times the life of cemented carbide grooving tools. Suitable for precision machining.

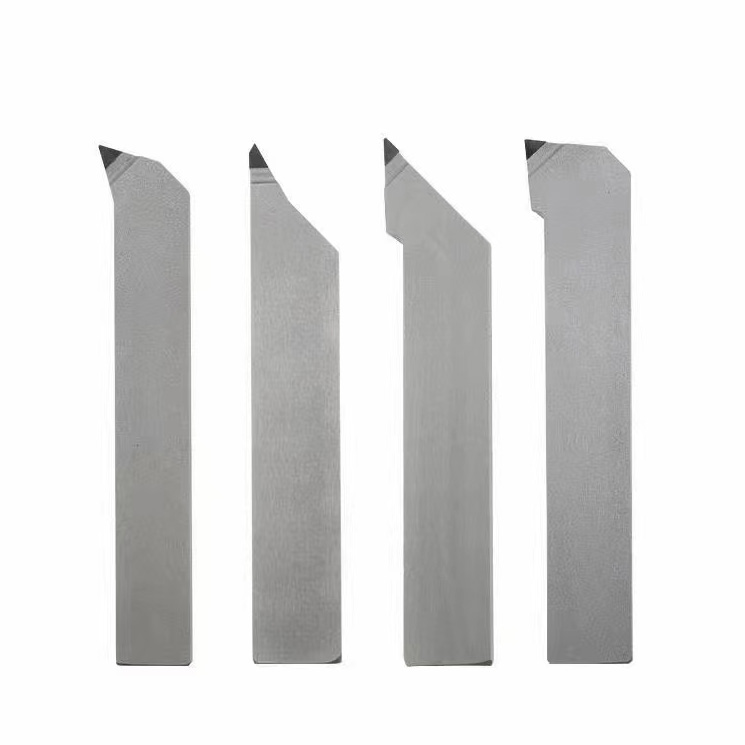

PCBN precision turning tool The anti-vibration effect is good, ensuring the roughness and precision of the workpiece surface, and various special-shaped turning tools can be customized.

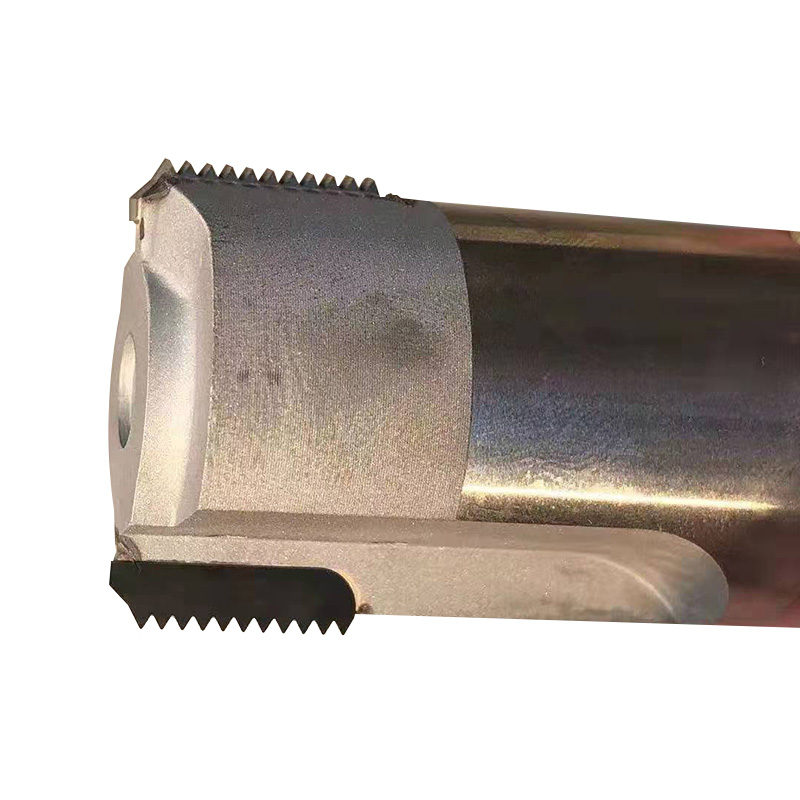

PCBN-PCD thread milling cutter Large row of thread milling cutters, suitable for rough and fine integrated groove and thread milling.
PCBN Grooving Knife Solve the problem of difficult machining of hard workpieces, mainly used in the automotive and abrasive industries.
PCBN ball nose cutter Used in industries such as groove machining and bearing milling, the main advantages The precision and surface roughness of the workpiece are improved, and the service life is far longer than that of cemented carbide.

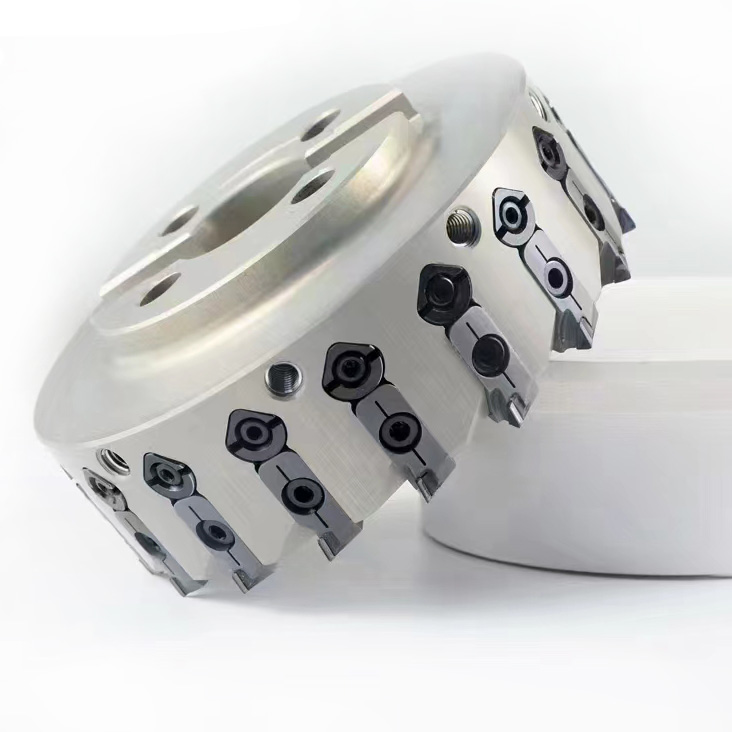

PCBN milling cutter head combination Use PCBN custom tools and special cutterheads to improve the efficiency of customer plane milling, as well as the highlight and flatness of the workpiece.

Can be made according to customer requirements

PCD Step Drill Excellent wear resistance, optimized chip removal with special geometry, suitable for high-speed machining, more efficient and durable PCD edge. Product advantages: Drilling and countersinking are completed at one time, eliminating the need for tool retraction, tool change and tool indexing when machining with conventional drills and reamers, which greatly shortens the processing time; it is suitable for pneumatic tools that can control feed, and can Use threaded or straight shanks. Aluminum matrix composites for machining aluminum, composites, or a combination of the two. Can be customized according to customer needs.
PCD End Mills PCD end mills mainly process the plane and elevation of aluminum alloy, copper alloy, stainless steel and other materials to achieve high-gloss effect.
PCD twist drill Especially suitable for CFRP fiber composite materials, high processing efficiency, I/CFRP and Ti/CFRP laminate material processing, long tool life
PCD Micro Drill Between the 0.3mm blade diameter, the PCD processing technology is fully realized. The blade is made of sintered PCD material, with large chip space design, extraordinary cutting sharpness, and high-precision centering. Bring customers a more efficient and cost-effective micro-hole processing experience.
PCD milling cutter PCD universal milling cutter is suitable for milling non-ferrous metals such as aluminum and aluminum alloys, copper and copper alloys, glass fiber and metal composite materials, glass, engineering ceramics, engineering plastics, stone and wood materials. Suitable for plunging, side milling, slot milling, contour milling and helical interpolation milling on solids.
PCD Reamers PCD reamers can be regrind many times and are cost-effective; suitable for reaming products of titanium alloys, superalloys, stainless steel, aluminum alloys, cast iron, carbon steel, alloy steel and hardened steel materials.
PCD stone carving knife All kinds of knives with diamond tips are suitable for wood, stone and metal processing fields, if you need, please contact the sales.
